Insert Ball Bearings

Insert ball bearings are mainly used in simple arrangements, e. g. in agricultural machines, conveyer devices, food processing machines, construction machines, etc.

Design specifications
The main dimensions of insert ball bearings specified in the dimension tables are in accordance with the international standards ISO 2264 and DIN 626 T1. The dimensions of the rings are in accordance with the international standard ISO 3145.



The insert ball bearings do not require maintenance. The filling of the lubrication is usually sufficient for the whole operation life of the bearing.

Radial Clearance
Insert ball bearings have radial clearance C3 in the range valid for the single row ball bearings.

Operation Temperature
Insert ball bearings are filled with high quality plastic lubricant, which is suitable for maximum operation temperature 100°C and minimum temperature -30°C.

Limiting Rotation Speed
The limiting rotation speed of the insert ball bearings depends mainly on the arrangement on the shaft (see the following table).

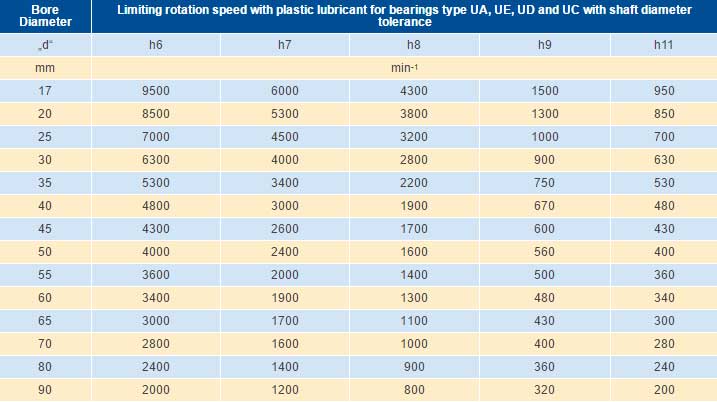

Limiting Rotation Speed for Various Shaft Diameter Tolerances
